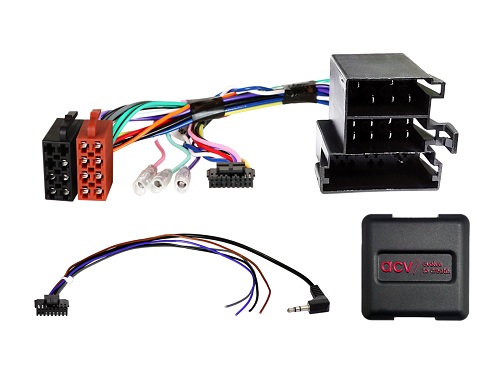

ACV 42xmc006-0 SWC Mercedes C W203 2000-2004
Кратко описание:
Модул за бутоните от волана за Mercedes C-class 2000-2004 ISO/10PIin Multilead
CAN Bus
connector: ISO / 10Pin ISO
connector: OEM SWC > 3,5mm Jack / loose wire
vehicles with Audio 10/Audio 30 OEM HU
vehicles with Comand 2.0 OEM Sat Nav CAN Bus in 18 Pin AMP connector:
Pin 8 brown CAN low
Pin 9 red-brown CAN high
not Robert Bosch CAN
dip switch settings for the retrofit device manufacturer (look into the manual)
Vehicle application:
Mercedes C-class (W203) 03/2000 - 04/2004
Following signals are provided:
Reimported vehicles or vehicles with different software may be incompatible in functions.
red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal
load capacity outputs: 250 mA max.
current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.
SWC
Цена: 179 лв. / 91.52 €
.
